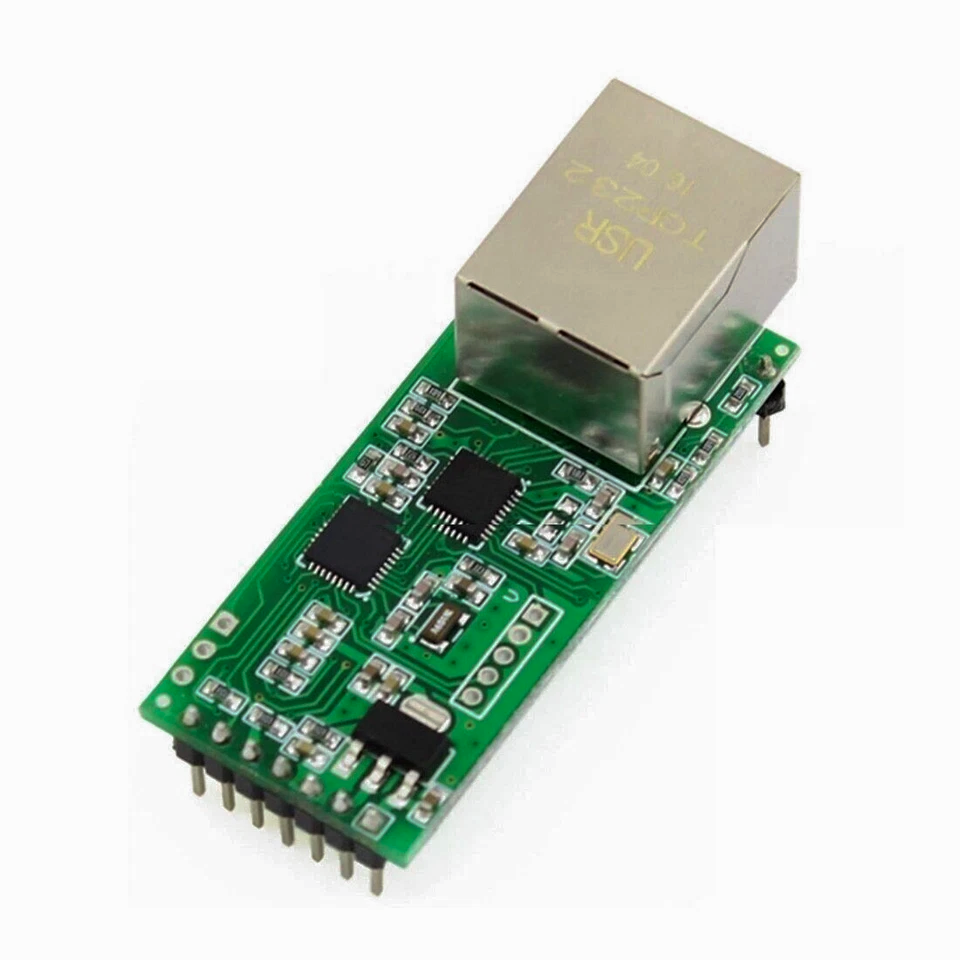

USR TCP232 T2

R289,95

Key Features & Highlights

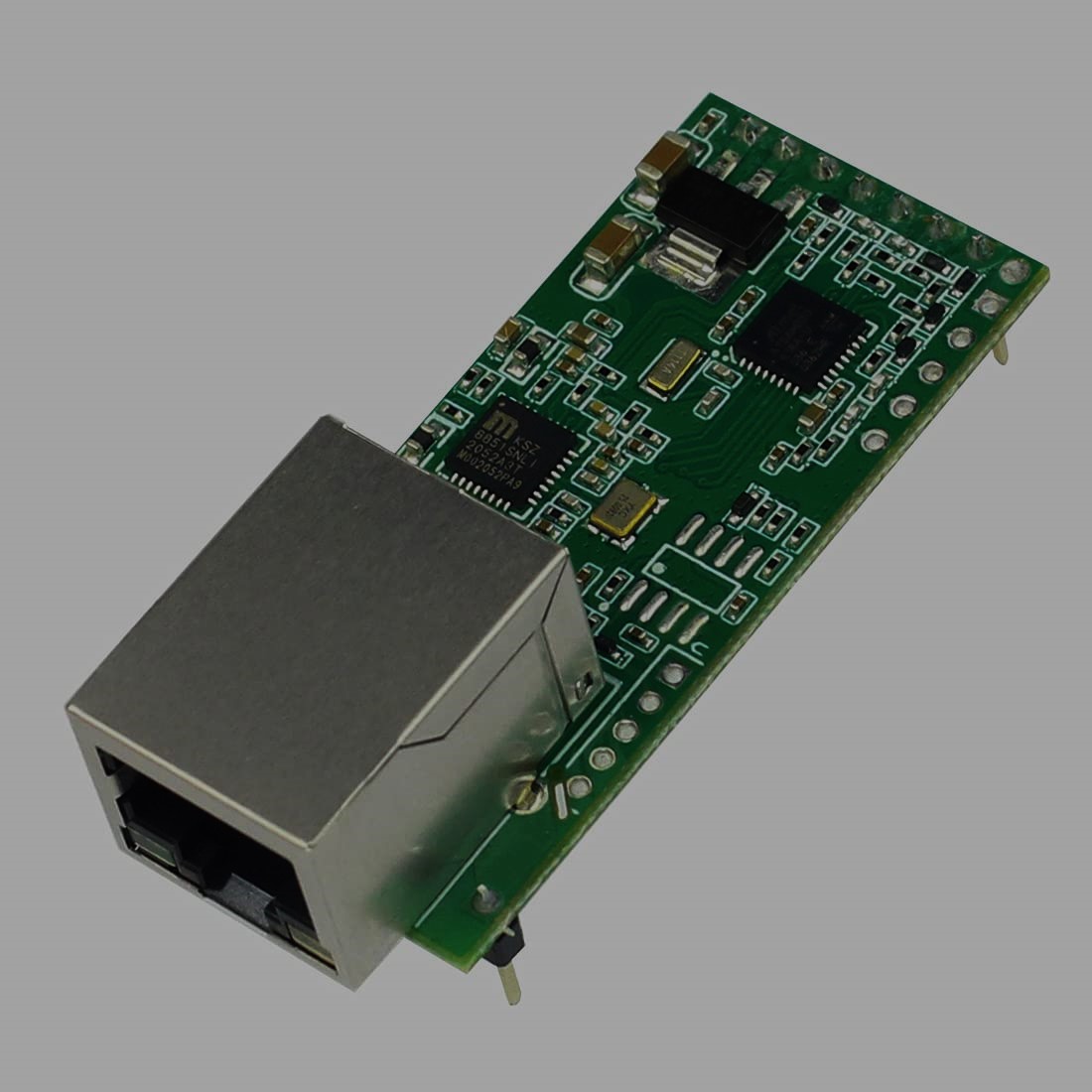

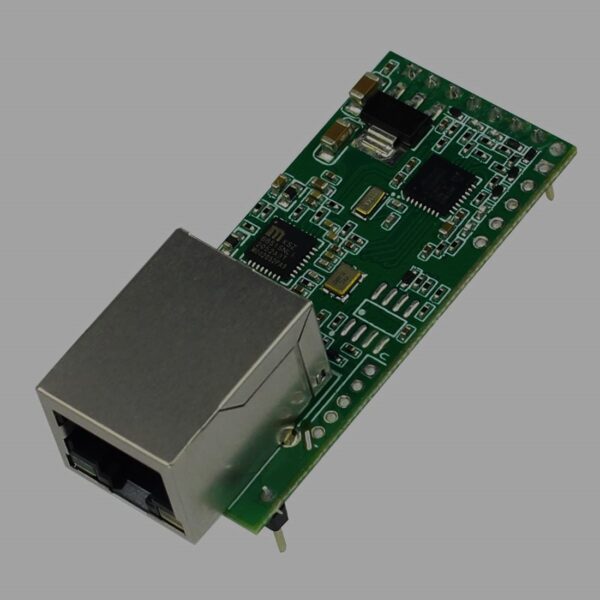

  • Compact Form Factor: PCB module approx. 55 × 22.6 × 23 mm with through-hole RJ45 jack

  • Processor: 48 MHz ARM Cortex‑M0 running an embedded TCP/IP stack


⚙️ Electrical & Communication Specs

  • Power Supply:

    • VDD: 5 V DC (4.75–5.5 V)

    • VCC: 3.3 V DC (3.15–3.45 V) (only one input used)

  • Current Consumption: ~170 mA at both 5 V and 3.3 V

  • Serial Interface: TTL-level UART (3.3 V), supports baud rates from 600 bps to 460.8 kbps; data bits 5–8, parity (None, Odd, Even, Mark, Space), stop bits 1 or 2

  • Ethernet Interface: Single RJ45 port, 10/100 Mbps, Auto‑MDI/MDIX, magnetic isolation


🌐 Networking Modes

  • DHCP & DNS client support

  • Operates in various modes: TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client

  • TCP Server can serve 1–16 simultaneous clients (default 4)

  • Virtual COM Port support via USR‑VCOM software for Windows


🛠️ Management & Reliability

  • Configure via web UI, AT commands over serial, or software tools

  • Supports firmware upgrades over network

  • Heartbeat and registration packet for connection monitoring

  • Hardware & software watchdog with automatic reset

  • Users can specify MAC address or use one from IEEE registry


🌡️ Environmental & Operating Specs

  • Operating Temp: ‑25 °C to +75 °C

  • Storage Temp: ‑40 °C to +105 °C

  • Humidity: 5% to 95% RH (non-condensing)


🧩 Dimensions & Pinout

  • PCB Size: 55.0 × 22.6 × 23.1 mm (T2 version)

  • Pins include serial TX/RX, power (5 V/3.3 V), ground, and a FACTORY RESET pin


✅ Typical Applications

  • Remote monitoring and device control

  • Serial device networking (e.g., sensors, PLCs)

  • Virtual COM ports for legacy equipment

  • Gateway functions: Modbus RTU ↔ Modbus TCP, multi-host polling


📊 Spec Recap

Parameter Value
Power Input 5 V (4.75–5.5 V) or 3.3 V (3.15–3.45 V)
Current Draw ~170 mA
UART Speed 600 bps–460.8 kbps
Ethernet 10/100 Mbps, Auto‑MDI/MDIX
CPU ARM Cortex‑M0 @48 MHz
Dimensions (L×W×H) 55 × 22.6 × 23.1 mm
Operating Temp ‑25 °C to +75 °C
Modes TCP/UDP Server & Client, HTTPD Client
Clients (TCP Server) Up to 16 (default 4)
Reliability Features Watchdog, heartbeat, reset pin
10 in stock

Description

Technical Specs of Serial to Ethernet Converter Modules USR-TCP232-T2

DHCP & DNS, automatically obtain an IP address and query IP address through serial setting protocol

Set parameters through Web page and serial AT command

Upgrade firmware via network

Auto – MDI / MDIX, RJ45 port with 10/100Mbps

Serial port baud rate from 600 bps to 460.8 Kbps, Check bit of None, Odd, Even, Mark and Space

Work mode: TCP Server, TCP Client, UDP Client, UDP Server, https D Client

Support virtual serial port and provide corresponding software USR – VCOM

Heartbeat package mechanism to ensure connection is reliable, put an end to dead link

User-defined registration package mechanism, check connection status and use as custom packet header

Under TCP Server mode, Client number ranges from 1 to 16; default number is 4

The global unique MAC address bought from IEEE, user can define MAC address

Restore factory default

Across the gateway, switches, routers

Can work in LAN, also can work in the Internet (external network)

Provide PC TCP/IP socket programming example such as VB, C++, Delphi, Android and IOS

Application Field of Serial UART Ethernet Modules

Industrial data transmission, industrial automation security and protection monitoring, public security

Smart home, power control, environmental monitoring, intelligent agriculture

Door check on work attendance system, POS system, rice selling system
Building automation system, power monitoring, self-service banking system, telecom machine room monitoring
